    1.28 Inch Round AMOLED Panel 360X360 Dots QSPI Interface Driving IC GC9C01

    Ask Lasest Price
    Brand Name : HuaXin
    Model Number : HX128ON1411
    Certification : ISO14001/ ISO9001/IATF16949
    Price : $6.4~$5.9
    Payment Terms : T/T
    Supply Ability : 500K pcs per month
    Delivery Time : 4~6weeks
    • Product Details
    • Company Profile

    1.28 Inch Round AMOLED Panel 360X360 Dots QSPI Interface Driving IC GC9C01

    1.28 Inch Round AMOLED Panel 360X360 Dots QSPI Interface Driving IC GC9C01
    Technical Parameters
    Part No:HX128ON1411
    display Mode1.28 inch round AMOLED display
    outline size(mm)35.88(H) ×38.44(V)×1.6(T)
    AA size(mm)33.48*33.48
    Display dots360X360
    view AngleALL
    Brightness400C/D
    interfaceQSPI
    Driving ICGC9C01

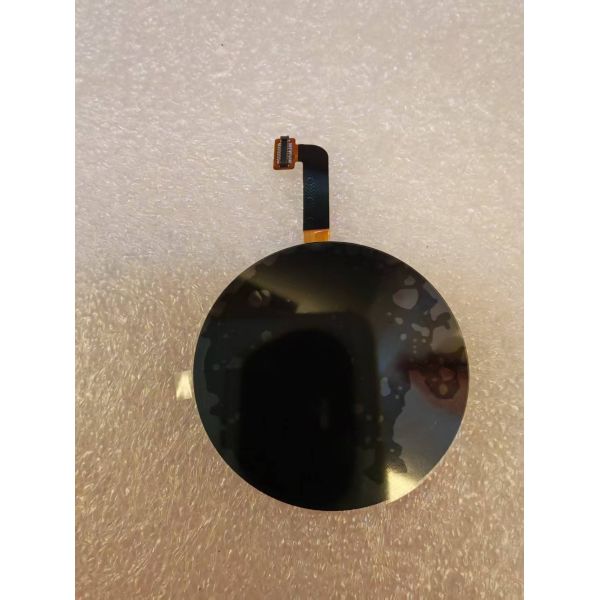

    Product Images

    1.28 Inch Round AMOLED Panel 360X360 Dots QSPI Interface Driving IC GC9C01

    1.28 Inch Round AMOLED Panel 360X360 Dots QSPI Interface Driving IC GC9C01

    1.28 Inch Round AMOLED Panel 360X360 Dots QSPI Interface Driving IC GC9C01

    1.28 Inch Round AMOLED Panel 360X360 Dots QSPI Interface Driving IC GC9C01




    Technical drawing

    AMOLED Technology Overview
    Advantages
    • Perfect blacks & infinite contrast ratio
    • Vibrant colors with wide gamut
    • Ultra-fast response times
    • Flexible and thin design capabilities
    • Energy efficient operation
    • Superior viewing angles
    • Excellent HDR performance
    Considerations
    • Higher cost compared to LCD/TFT
    • Shorter operational lifetime
    • Lower peak brightness in sustained use
    Power Efficiency Comparison
    • Content-dependent efficiency: AMOLED consumes power per pixel, saving energy on dark content
    • Brightness control: Dynamic pixel brightness adjustment improves low-light efficiency
    • Size impact: More efficient for smaller displays where pixel count is lower
    • Backlight difference: LCD/LED require constant backlight regardless of content
    Manufacturer Advantages
    • Cost-effective inland manufacturing base
    • Advanced automated production equipment
    • 20+ years of LCD industry expertise
    • Custom design capabilities
    • ISO 14001, ISO 9001, IATF 16949, and SGS certified
    Huaxin Technology (Enshi) Co., LTD

    Founded in 2009 in Hubei Enshi, specializing in LCD, LCM, TFT, backlight, and OLED research, development, and production.

    • Registered capital: 20 million
    • 500+ employees (10% R&D, 15% QC)
    • Product range includes VA, TN, HTN, STN, FSTN, CSTN LCDs
    • LCM capabilities: COB, TBA, COG, TP, LED backlight
    Production Capacity
    Product20212022202320242025
    LCD (k logs/day)4.59999
    LCM (k pieces/day)70150300450450
    Backlight (k pieces/day)100200300500500
    OLED (k pieces/day)1020304050
    Typical Applications
    • Smartphones and tablets
    • Wearable devices (smartwatches)
    • AR/VR headsets
    • Television and monitors
    • Automotive displays
    • Medical equipment and smart home devices
    Quality 1.28 Inch Round AMOLED Panel 360X360 Dots QSPI Interface Driving IC GC9C01 for sale
