| Brand Name : | HuaXin |
| Model Number : | HX0136Y002 |
| Certification : | ISO14001/ ISO9001/IATF16949 |
| Price : | $3.9~$3.6 |
| Payment Terms : | T/T |
| Supply Ability : | 500K pcs per month |
| Delivery Time : | 4~6weeks |

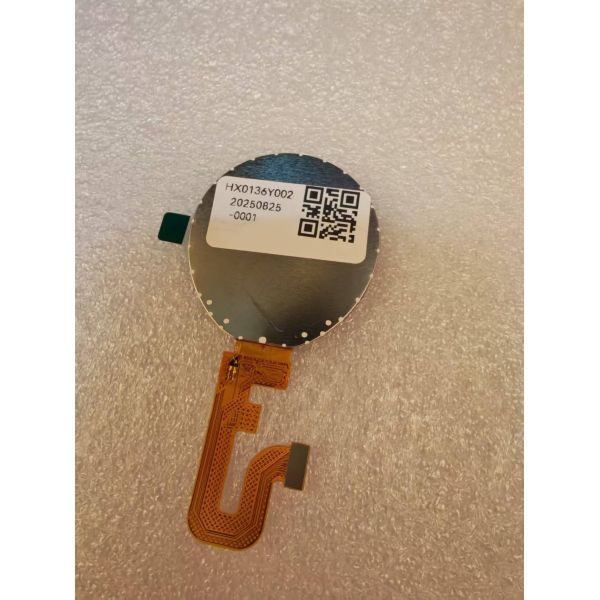

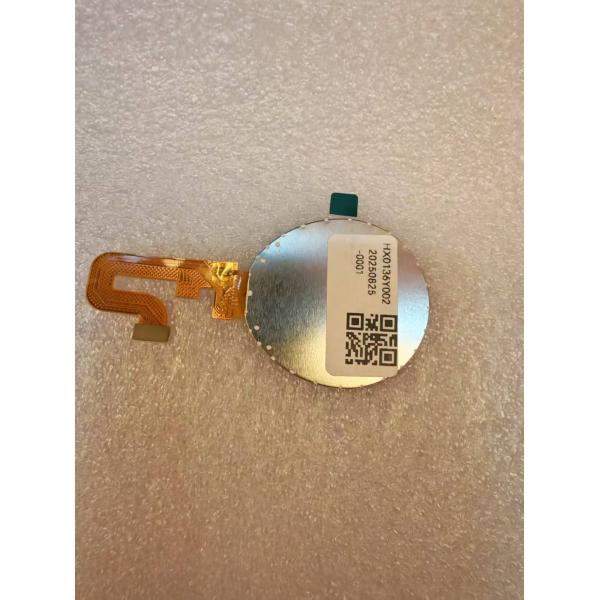

1.36 Inch Round TFT Display 360X360 Resolution QSPI Interface Driving IC GC9C01 400C/D brightness
| Part No: | HX0136Y002 |
| display Mode | 1.36 inch round TFT Display |
| outline size(mm) | 35.88(H) ×38.44(V)×1.6(T) |
| AA size(mm) | 33.48*33.48 |
| Display dots | 360X360 |
| view Angle | ALL |
| Brightness | 400C/D |
| interface | QSPI |
| Driving IC | GC9C01 |







Location: Hubei, Enshi
Founded: 2009
Specialization: Research, development, production and sales of LCD, LCM, TFT,
backlight, and OLED technologies
| Product Type | 2021 | 2022 Goal | 2023 Goal | 2024 Goal | 2025 Goal |
|---|---|---|---|---|---|
| LCD Production (k logs/day) | 4.5 | 9 | 9 | 9 | 9 |
| LCM Production (k pieces/day) | 70 | 150 | 300 | 450 | 450 |
| Backlight Production (k pieces/day) | 100 | 200 | 300 | 500 | 500 |
| OLED Production (k pieces/day) | 10 | 20 | 30 | 40 | 50 |
|
