    0.71 inch white PMOLED display 48*64 dots 14PINS IIC interface driving IC SSD1306

    Ask Lasest Price
    Brand Name : HuaXin
    Model Number : HX4864TSWCP02
    Certification : ISO14001/ ISO9001/IATF16949
    Price : $1.44
    Payment Terms : T/T
    Supply Ability : 500K pcs per month
    Delivery Time : 4~6weeks
    • Product Details
    • Company Profile

    0.71 inch white PMOLED display 48*64 dots 14PINS IIC interface driving IC SSD1306

    0.71 inch white PMOLED display 48*64 dots 14PINS IIC interface driving IC SSD1306
    Key Specifications
    Part NO.HX4864TSWCP02
    Display TechnologyPMOLED
    Diagonal Screen Size0.71 inch
    Resolution48*64
    Viewing Angleall
    Active Area (mm)10.54X14.7mm
    Module Size(mm)13.9x22x1.26mm
    Pixel pitch0.18x0.2
    Pixel size0.16x0.18
    Operation Temperature-40~85
    display colorwhite
    InterfaceIIC interface
    Pin q'ty14 pins
    driving ICSSD1306
    Connecting methodsoldering

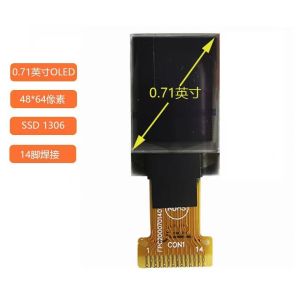

    Product Images

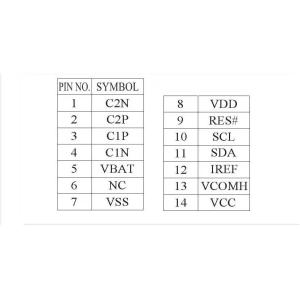

    Technical Drawings




    OLED Advantages
    • Lighter and thinner than LCD displays
    • High contrast ratio and excellent color saturation
    • Lower power consumption for energy efficiency
    OLED Disadvantages
    • Higher production cost compared to LCD and TFT
    • Shorter operational lifetime than LCD and TFT displays
    PMOLED Characteristics
    • Passive matrix addressing scheme with independent pixel control
    • High contrast and vibrant colors without requiring backlight
    • Power efficient design - only active pixels consume energy
    • Thin and flexible construction suitable for wearable devices
    • Ideal for small-sized screens with moderate resolution requirements
    Product Applications
    • Wearable devices and smart watches
    • Portable audio players and media devices
    • Thermostats and home automation systems
    • Automotive dashboards and instrument clusters
    • Medical monitoring and diagnostic equipment
    • Consumer electronics and appliances
    • Industrial and professional equipment displays
    Manufacturer Information
    Huaxin Technology (Enshi) Co., LTD
    Hubei, Enshi | Founded: 2009
    High technology enterprise specializing in research, development, and production of LCD, LCM, TFT, backlight, and OLED displays.
    Company Advantages
    • Cost-effective inland manufacturing base
    • Advanced equipment ensuring stable product quality
    • Automated production processes for efficiency
    • 20+ years experience in LCD technology field
    • Custom design capabilities for specialized applications
    Certifications
    • ISO14001 Environmental Management System
    • ISO9001/IATF16949 Quality Management System
    • SGS certified LCD modules
    Production Capacity (thousands/day)
    Product20212022202320242025
    LCD4.59999
    LCM70150300450450
    Backlight100200300500500
    OLED1020304050
