    1.5 inch WHITE /BLUE PMOLED display 128*128dots 3/4 SPI,I2C interface driving IC SH1107

    Ask Lasest Price
    Brand Name : HuaXin
    Model Number : ESHX2828GDEDF1
    Certification : ISO14001/ ISO9001/IATF16949
    Price : $3.125
    Payment Terms : T/T
    Supply Ability : 500K pcs per month
    Delivery Time : 4~6weeks
    • Product Details
    • Company Profile

    1.5 inch WHITE /BLUE PMOLED display 128*128dots 3/4 SPI,I2C interface driving IC SH1107

    1.5 inch WHITE/BLUE PMOLED Display

    High-resolution 128×128 dots display with 3/4 SPI and I2C interface, powered by SH1107 driving IC.

    Key Specifications
    AttributeValue
    Display TechnologyOLED display
    TypePMOLED display
    Size1.5 inch
    ColorWhite/Blue
    Brightness100c/d
    Interface25pins 3/4 SPI, I2C
    Driving ICSH1107
    Technical Parameters
    Part NumberESHX2828GDEDF1
    Diagonal Screen Size1.5 inch
    Resolution128×128
    Viewing AngleFree
    Active Area26.86×26.86 mm
    Module Size33.9×37.3×1.45 mm
    Pixel Pitch0.21×0.21
    Pixel Size0.19×0.19
    Operation Temperature-40°C to 70°C
    Display ColorWhite/Blue
    Connecting MethodSoldering
    Product Images

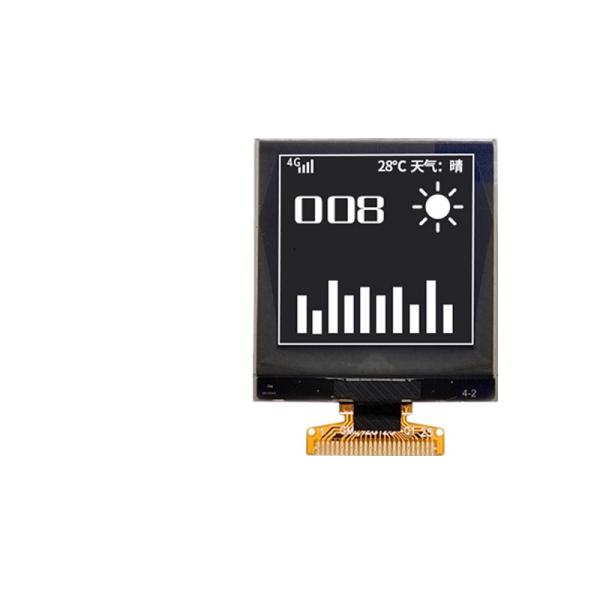

    1.5 inch PMOLED display front view 1.5 inch PMOLED display side view 1.5 inch PMOLED display close-up 1.5 inch PMOLED display technical view
    Technical Drawings
    PMOLED display technical drawing PMOLED display pin definition diagram
    OLED Technology Overview
    OLED Advantages
    • Lighter and thinner than LCDs
    • High contrast and color saturation
    • Lower power consumption
    OLED Disadvantages
    • Higher cost compared to LCD and TFT
    • Shorter lifetime than LCD and TFT
    PMOLED Characteristics
    • Passive matrix addressing scheme with independent pixel control
    • High contrast and vibrant colors without backlight
    • Power efficient - only active pixels consume energy
    • Thin and flexible design suitable for wearable devices
    • Ideal for small-sized screens with moderate resolution requirements
    Product Applications
    • Wearable devices
    • Portable audio players
    • Thermostats and home automation
    • Car dashboards and instrument clusters
    • Medical devices
    • Consumer electronics
    • Industrial and professional equipment
    Manufacturer Information

    Huaxin Technology (Enshi) Co., LTD
    Hubei, Enshi | Founded: 2009

    High technology enterprise specializing in research, development, and production of LCD, LCM, TFT, backlight, and OLED displays.

    Company Advantages
    • Cost-effective inland manufacturing base
    • Advanced equipment for stable quality
    • Automated processes for efficiency
    • 20+ years experience in LCD field
    • Custom design capabilities
    Certifications
    • ISO14001
    • ISO9001/IATF16949
    • SGS certified LCD modules
    Production Capacity
    Product20212022202320242025
    LCD (thousands/day)4.59999
    LCM (thousands/day)70150300450450
    Backlight (thousands/day)100200300500500
    OLED (thousands/day)1020304050
