    1.54 inch OLED with PCB 128x64 dots IIC interface driving IC SSD1309 120C/D

    Ask Lasest Price
    Brand Name : HuaXin
    Model Number : ESHX1054LEDMK
    Certification : ISO14001/ ISO9001/IATF16949
    Price : $3.8
    Payment Terms : T/T
    Supply Ability : 500K pcs per month
    Delivery Time : 4~6weeks
    • Product Details
    • Company Profile

    1.54 inch OLED with PCB 128x64 dots IIC interface driving IC SSD1309 120C/D

    1.54 inch OLED with PCB 128×64 dots IIC interface driving IC SSD1309 120C/D
    Product Specifications
    AttributeValue
    Display TechnologyOLED module
    Product NamePMOLED screen
    Size1.54 inch
    ColorWhite/Blue
    Brightness120c/d
    InterfaceIIC
    Driving ICSSD1309
    Technical Parameters
    Part No.ESHX1054LEDMK
    Display Mode1.54 inch OLED with PCB
    Outline Size (mm)42.40 × 38.00 × 2.65
    AA Size (mm)35.052 × 17.516
    Display Dots128×64
    View AngleAll
    Working Temperature-40°C to 70°C
    Storage Temperature-40°C to 85°C
    Product Images

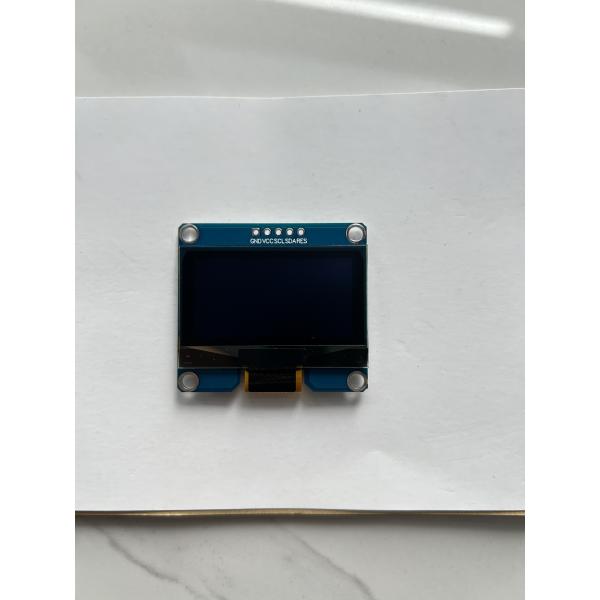

    1.54 inch OLED module front view 1.54 inch OLED module side view
    Pin Definition Diagram
    1.54 inch OLED module pin definition diagram
    OLED Technology Overview
    OLED Advantages
    • Lighter and thinner than LCD displays
    • High contrast ratio and color saturation
    • Lower power consumption
    OLED Disadvantages
    • Higher cost compared to LCD and TFT
    • Shorter lifespan than LCD and TFT
    Company Profile
    HuaXin Technology Advantages
    • Cost-effective inland manufacturing base
    • Advanced equipment for stable quality
    • Automated processes for efficiency
    • 20+ years experience in LCD field
    • Custom design capabilities
    Certifications
    • ISO14001
    • ISO9001/IATF16949
    • SGS certified LCD modules
    Company Details
    • Location: Hubei, Enshi
    • Founded: 2009
    • Specialization: R&D, production and sales of LCD, LCM, TFT, backlight, OLED
    • Registered capital: 20 million
    • Employees: 500+
    • R&D team: 10% of workforce
    • QC team: 15% of workforce
    Production Capacity
    Product Type20212022202320242025Unit
    LCD Production4.59999Thousands/Day
    LCM Production70150300450450Thousands/Day
    Backlight Production100200300500500Thousands/Day
    OLED Production1020304050Thousands/Day
    Product Applications
    • Wearable devices
    • Portable audio players
    • Thermostats and home automation
    • Car dashboards and instrument clusters
    • Medical devices
    • Consumer electronics
    • Industrial and professional equipment
    PMOLED Characteristics
    • Passive matrix structure with independent OLED pixels
    • High contrast ratio and vibrant colors without backlight
    • Power efficient - only active pixels consume energy
    • Thin and flexible substrate options
    • Best suited for smaller displays due to resolution limitations
    • Potential for screen persistence with static images
    AMOLED vs PMOLED Comparison
    AMOLED Advantages
    • Higher resolution capabilities
    • Superior color reproduction
    • Faster refresh rates
    • Improved power efficiency
    • Support for larger screen sizes
    • Better flexibility for curved displays
