    0.96 inch PMOLED display 128X64 dots 8PINS SPI interface driving IC SSD1315

    Ask Lasest Price
    Brand Name : HuaXin
    Model Number : HX12864-132
    Certification : ISO14001/ ISO9001/IATF16949
    Price : $0.7
    Payment Terms : T/T
    Supply Ability : 500K pcs per month
    Delivery Time : 4~6weeks
    • Product Details
    • Company Profile

    0.96 inch PMOLED display 128X64 dots 8PINS SPI interface driving IC SSD1315

    0.96 inch PMOLED display 128X64 dots 8PINS SPI interface driving IC SSD1315
    Product Attributes
    AttributeValue
    Display TechnologyOLED screen
    NamePMOLED
    Size0.96 inch
    ColorWhite/Blue
    Brightness100c/d
    Interface8PINS SPI
    Driving ICSSD1315
    Technical Parameters
    Part No.HX12864-132
    Display Mode0.96 inch PMOLED display
    Outline Size24.7*16.6*1.3
    VA Size21.74*11.175
    Display Dots128X64
    View AngleALL
    Interface8PINS SPI
    Working Temperature20~70°C
    Storage Temperature-30~80°C
    Driving ICSSD1315
    Product Images
    PMOLED display front view PMOLED display side view PMOLED display close-up

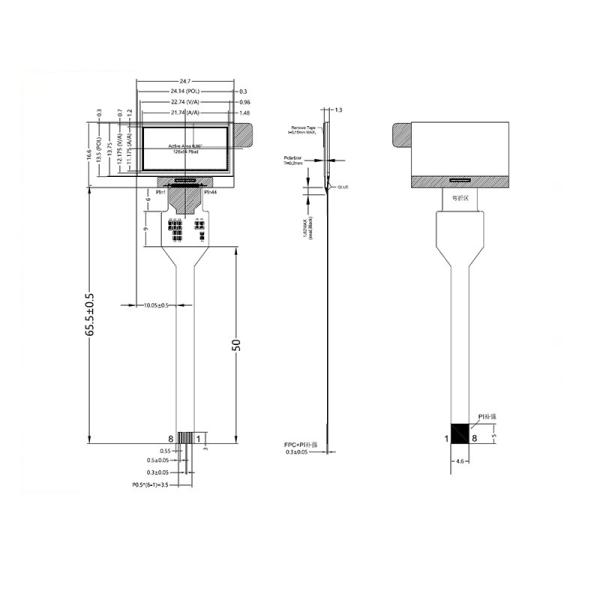

    Drawing & Pin Definition
    PMOLED display pin definition diagram
    OLED Product Knowledge

    OLED Advantages:

    • Lighter and thinner than LCDs
    • High contrast
    • High color saturation
    • Lower power consumption

    OLED Disadvantages:

    • AMOLED is extremely expensive compared to LCD and TFT
    • Lifetime is shorter than LCD and TFT
    Company Information

    HuaXin Advantages:

    • Factory base located at inland city which has cost effective
    • Most advanced new equipment which can keep quality stable
    • Most processes using fully automatic equipment which has efficiency and stable quality
    • Professional engineers and production leaders with 20+ years experience in LCD field
    • Self design for customized product

    Our Certificates:

    • ISO14001
    • ISO9001/IATF16949
    • SGS of LCD module

    Huaxin Technology (Enshi) Co.,LTD

    • Location: Hubei.Enshi
    • Founded: 2009
    • High technology enterprise specializing in R&D, production and sales of LCD, LCM, TFT, backlight, OLED
    • LCD includes: VA, TN, HTN, STN, FSTN, CSTN and other series
    • LCM includes: COB, TBA, COG, TP, LED backlight and other series
    • Registered capital: Twenty million
    • Current staff: 500+
    • R&D accounts for 10%
    • QC accounts for 15%
    Production Capacity
    Annual Production Capacity2021 (Current)2022 (Goal)2023 (Challenge)2024 (Challenge)2025 (Challenge)Remark
    LCD Production Capacity4.59999Unit: thousands of logarithms/Day
    LCM Production Capacity70150300450450Unit: Thousand piece/Day
    Backlight Production Capacity100200300500500Unit: Thousand piece/Day
    OLED Production Capacity1020304050Unit: Thousand piece/Day
    Product Applications
    • Wearable Devices
    • Portable Audio Players
    • Thermostats and Home Automation Devices
    • Car Dashboards and Instrument Clusters
    • Medical Devices
    • Consumer Electronics
    • Industrial and Professional Equipment
    PMOLED Characteristics
    • Display Structure: PMOLED displays consist of an array of organic light-emitting diodes (OLEDs) arranged in rows and columns. Each OLED acts as a single pixel and emits light independently.
    • Passive Matrix: PMOLEDs use a passive matrix addressing scheme, where each row and column intersection in the display matrix is controlled by a driving circuit.
    • High Contrast and Color Saturation: PMOLED displays offer high contrast ratios and vibrant colors without the need for a backlight.
    • Power Efficiency: Consumes power only for active pixels, unlike LCDs that require constant backlight power.
    • Thin and Flexible: Can be manufactured on flexible substrates, suitable for curved displays or wearable devices.
    • Limited Resolution and Size: Typically limited in resolution and more suitable for smaller-sized screens.
    • Screen Persistence: Susceptible to screen persistence or burn-in from prolonged display of static images.
    AMOLED vs PMOLED Advantages
    • Higher Resolution: AMOLED displays offer better resolution capabilities.
    • Better Color Reproduction: Improved color accuracy and range.
    • Faster Refresh Rates: Better performance for dynamic content.
    • Improved Power Efficiency: More efficient power usage in active matrix design.
    • Larger Screen Sizes: More suitable for larger display applications.
    • Flexibility and Curved Displays: Advanced capabilities for flexible and curved designs.
