    2.7 Inch Oled Touch Panel PMOLED Display 128*64 Monochrome Low Power Consumption

    Ask Lasest Price
    Brand Name : HuaXin
    Model Number : HX270Y-128064
    Certification : ISO14001/ ISO9001/IATF16949
    Price : $7.6
    Payment Terms : T/T
    Supply Ability : 500K pcs per month
    Delivery Time : 4~6weeks
    • Product Details
    • Company Profile

    2.7 Inch Oled Touch Panel PMOLED Display 128*64 Monochrome Low Power Consumption

    2.7-inch PMOLED Display with 128×64 Resolution

    High-contrast monochrome OLED display with grayscale capability, ideal for industrial control instruments, medical devices, and handheld terminals. Features low power consumption, wide temperature range, and compatibility with SPI/I2C interfaces.

    Key Specifications
    AttributeValue
    Display TechnologyPMOLED Screen
    Resolution128×64
    Screen Size2.7 inch
    Display ColorWhite/Yellow
    Interface8-bit 68XX/80XX Parallel 4-wire SPI
    Driving ICSSD1325
    Technical Parameters
    Part NumberHX2864ASWDF06
    Active Area61.41×30.69 mm
    Module Size73×41.86×2 mm
    Operating Temperature-40°C to 70°C
    Pin Quantity30 PINS
    Product Images
    Front view of 2.7-inch PMOLED display Side view of PMOLED display module Close-up of display pixels Display module with measurement scale Display showing test pattern
    Technical Drawings

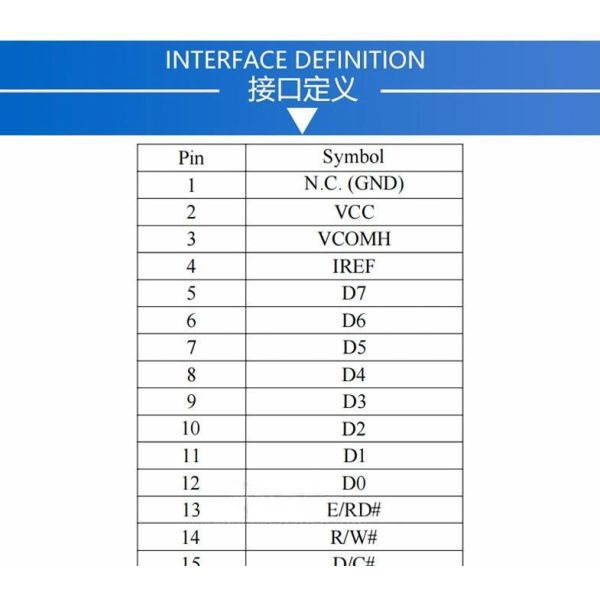

    PMOLED display schematic diagram Pin definition diagram for display module
    PMOLED Technology Overview
    Advantages
    • Lighter and thinner than LCD displays
    • High contrast ratio and color saturation
    • Lower power consumption (only active pixels draw power)
    • Flexible substrate compatibility
    • Excellent viewing angles
    Characteristics
    • Passive matrix addressing scheme
    • Each OLED pixel emits light independently
    • Suitable for smaller screen sizes (typically under 3")
    • Fast response times
    • Wide operating temperature range
    Product Applications
    • Wearable devices and fitness trackers
    • Portable audio players and electronic instruments
    • Thermostats and home automation devices
    • Car dashboards and instrument clusters
    • Medical monitoring equipment
    • Industrial control panels and professional equipment
    • Consumer electronics displays
    Manufacturer Information

    Huaxin Technology (Enshi) Co., Ltd.
    Hubei, Enshi | Founded: 2009
    High-tech enterprise specializing in LCD, LCM, TFT, backlight, and OLED technologies

    Company Advantages
    • Cost-effective inland production base
    • Advanced equipment for stable quality
    • Automated production processes
    • 20+ years of industry experience
    • Custom design capabilities
    Certifications
    • ISO 14001
    • ISO 9001/IATF 16949
    • SGS certified LCD modules
    Production Capacity
    Product Type20212022202320242025
    LCD (thousands/day)4.59999
    LCM (thousands/day)70150300450450
    Backlight (thousands/day)100200300500500
    OLED (thousands/day)1020304050
