    24PIN 1.54 Inch Oled Display 128x64 Plug-In CH1116 Driver SPI/IIC Interface

    Ask Lasest Price
    Brand Name : HuaXin
    Model Number : HX154CH111624PC
    Certification : ISO14001/ ISO9001/IATF16949
    Price : $3.8~$3.3
    Payment Terms : T/T
    Supply Ability : 500K pcs per month
    Delivery Time : 4~6weeks
    • Product Details
    • Company Profile

    24PIN 1.54 Inch Oled Display 128x64 Plug-In CH1116 Driver SPI/IIC Interface

    24PIN 1.54 Inch OLED Display 128x64 Resolution Plug-In CH1116 Driver SPI/IIC Interface
    Product Specifications
    AttributeValue
    Display TechnologyPMOLED screen
    NamePMOLED display
    Resolution128×64
    Size1.54 inch
    ColorWhite
    Interface8-bit Parallel Port/SPI/I2C
    Driving ICCH1116
    Product Description

    1.54-inch mini OLED display with 128×64 resolution, 24PIN plug-in, CH1116 driver, and SPI/IIC dual interface. Suitable for smart wearables and maker development with low-power consumption.

    A: Technical Parameters
    ParameterValue
    Part NO.HX154CH111624PC
    Display TechnologyPMOLED
    Diagonal Screen Size1.54 inch
    Resolution128×64
    Viewing AngleFree
    Active Area (mm)35.052×17.516mm
    Module Size (mm)42.04×27.72×1.45mm
    Operation Temp-40~70°C
    Display ColorWhite
    Interface8-bit Parallel Port/SPI/I2C
    Pin Quantity24 PINS
    Driving ICCH1116
    Connecting MethodConnecting
    B: Product Images

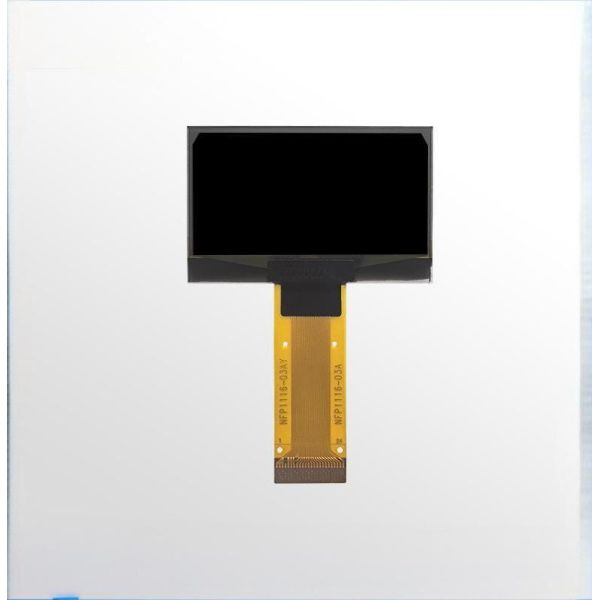

    1.54-inch OLED display front view
    1.54-inch OLED display side view
    1.54-inch OLED display close-up
    1.54-inch OLED display connection details
    C: Drawing & Pin Definition
    1.54-inch OLED display pin definition diagram
    D: OLED Product Knowledge
    OLED Advantages:
    • Lighter and thinner than LCDs
    • High contrast and color saturation
    • Lower power consumption
    OLED Disadvantages:
    • AMOLED is more expensive than LCD and TFT
    • Lifetime is shorter than LCD and TFT
    E: Company Information
    HuaXin Advantages
    • Factory base located at inland city with cost-effective operations
    • Most advanced equipment ensuring stable quality
    • Most processes use fully automatic equipment for efficiency and stable quality
    • Professional engineers with over 20 years experience in LCD field
    • Self-design capability for customized products
    Our Certificates
    • ISO14001
    • ISO9001/IATF16949
    • SGS of LCD module
    Company Details

    Huaxin Technology (Enshi) Co., LTD

    • Location: Hubei, Enshi
    • Founded: 2009
    • High technology enterprise specializing in R&D, production and sales of LCD, LCM, TFT, backlight, OLED
    • LCD includes: VA, TN, HTN, STN, FSTN, CSTN and other series
    • LCM includes: COB, TBA, COG, TP, LED backlight and other series
    • Registered capital: Twenty million
    • Current staff: 500+
    • R&D accounts for 10%
    • QC accounts for 15%
    F: Production Capacity
    Annual Production Capacity2021 (Current)2022 (Goal)2023 (Challenge)2024 (Challenge)2025 (Challenge)Remark
    LCD Production Capacity4.59999Unit: thousands of logarithms/Day
    LCM Production Capacity70150300450450Unit: Thousand piece/Day
    Backlight Production Capacity100200300500500Unit: Thousand piece/Day
    OLED Production Capacity1020304050Unit: Thousand piece/Day
    G: Product Applications
    • Wearable Devices
    • Portable Audio Players
    • Thermostats and Home Automation Devices
    • Car Dashboards and Instrument Clusters
    • Medical Devices
    • Consumer Electronics
    • Industrial and Professional Equipment
    H: PMOLED Characteristics
    1. Display Structure: PMOLED displays consist of an array of organic light-emitting diodes (OLEDs) arranged in rows and columns. Each OLED acts as a single pixel and emits light independently.
    2. Passive Matrix: PMOLEDs use a passive matrix addressing scheme, where each row and column intersection in the display matrix is controlled by a driving circuit.
    3. High Contrast and Color Saturation: PMOLED displays offer high contrast ratios and vibrant colors without the need for a backlight.
    4. Power Efficiency: PMOLED displays consume power only for the pixels that are active.
    5. Thin and Flexible: PMOLED displays are relatively thin and can be manufactured on flexible substrates.
    6. Limited Resolution and Size: PMOLED technology has certain limitations in resolution and is more suitable for smaller-sized screens.
    7. Screen Persistence: PMOLED displays are susceptible to screen persistence or burn-in with prolonged display of static images.
    I: AMOLED vs PMOLED Advantages
    • Higher Resolution: AMOLED displays can achieve higher resolutions than PMOLED.
    • Better Color Reproduction: AMOLED offers superior color accuracy and reproduction.
    • Faster Refresh Rates: AMOLED technology supports higher refresh rates.
    • Improved Power Efficiency: AMOLED is more power efficient, especially for complex images.
    • Larger Screen Sizes: AMOLED can be manufactured in larger sizes than PMOLED.
    • Flexibility and Curved Displays: AMOLED is better suited for flexible and curved display applications.
