    Square 0.96 Inch OLED Display 96x96 Resolution 12PIN SSD1317 Driver Serial Port Screen

    Ask Lasest Price
    Brand Name : HuaXin
    Model Number : HX09696XYJ
    Certification : ISO14001/ ISO9001/IATF16949
    Price : $0.98
    Payment Terms : T/T
    Supply Ability : 500K pcs per month
    Delivery Time : 4~6weeks
    • Product Details
    • Company Profile

    Square 0.96 Inch OLED Display 96x96 Resolution 12PIN SSD1317 Driver Serial Port Screen

    0.96-inch OLED Display | 96x96 Square Screen, 12PIN Welding, SSD1317 Driver, Serial Port Screen
    Product Overview

    Compact 0.96-inch square PMOLED display with 96x96 resolution, featuring 12-pin welding, SSD1317 driver, and serial port interface. Ideal for smart sensors, DIY devices, and miniature electronics with its low power consumption and high contrast ratio.

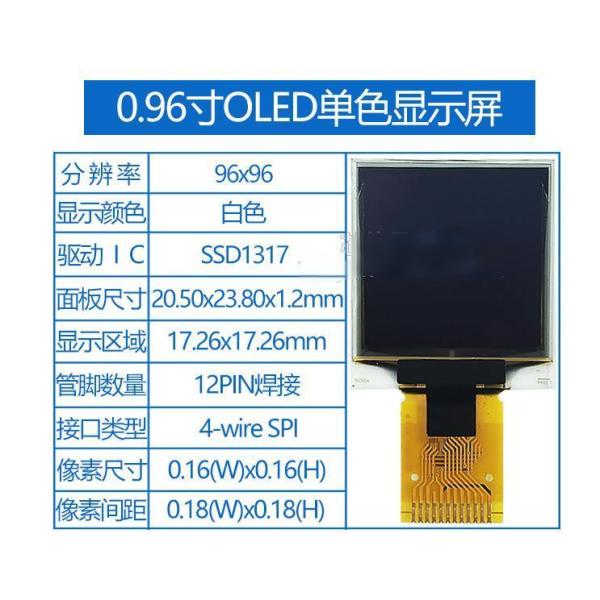

    Technical Specifications
    AttributeValue
    Display TechnologyPMOLED screen
    Resolution96×96
    Size0.96 inch
    ColorWhite
    Interface4-wire SPI
    Driving ICSSD1317
    Part NumberHX09696XYJ
    Viewing AngleFree
    Active Area17.26×17.26mm
    Module Size20.50(W)×23.80(H)×1.20(D)mm
    Operating Temperature-40°C to 70°C
    Pin Quantity12 PINS

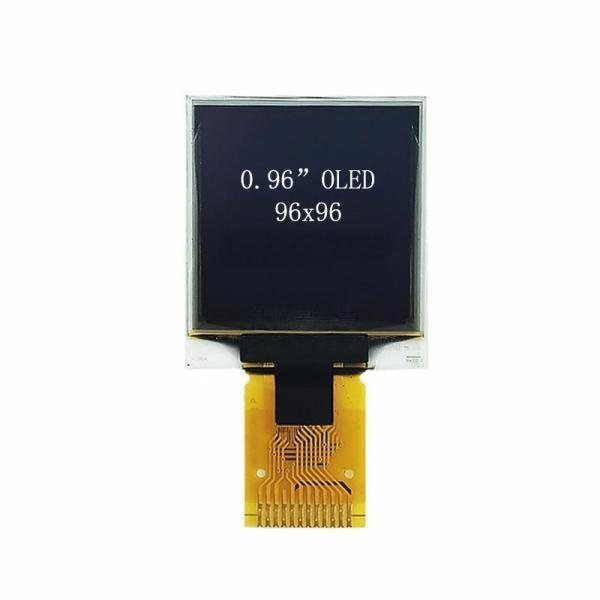

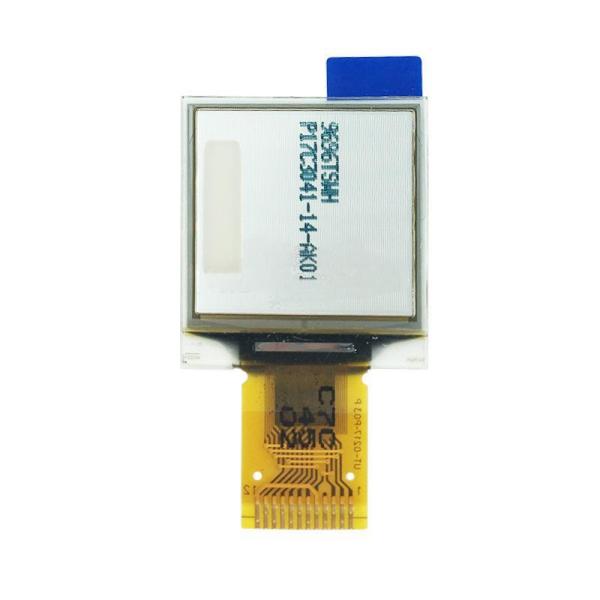

    Product Images
    Technical Drawings
    OLED Technology Overview
    Advantages
    • Lighter and thinner than LCD displays
    • High contrast ratio and color saturation
    • Lower power consumption
    • Each pixel emits its own light for true blacks
    PMOLED Characteristics
    • Passive matrix addressing scheme
    • High contrast and vibrant colors without backlight
    • Power efficient - only active pixels consume energy
    • Thin and flexible substrate options
    • Ideal for small to medium-sized displays
    Applications
    • Wearable devices
    • Portable audio players
    • Thermostats and home automation
    • Car dashboards and instrument clusters
    • Medical devices
    • Consumer electronics
    • Industrial and professional equipment
    Manufacturer Information

    Huaxin Technology (Enshi) Co., LTD is a high-tech enterprise specializing in LCD, LCM, TFT, backlight, and OLED research, development, and production since 2009.

    Company Advantages
    • Cost-effective inland manufacturing base
    • Advanced equipment for stable quality
    • Automated production processes
    • 20+ years of industry experience
    • Custom design capabilities
    Certifications
    • ISO14001
    • ISO9001/IATF16949
    • SGS certified LCD modules
    Production Capacity
    Product20212022202320242025Unit
    LCD4.59999Thousands/Day
    LCM70150300450450Thousand/Day
    Backlight100200300500500Thousand/Day
    OLED1020304050Thousand/Day
