    1920*1080 Small Oled Display Module 0.49 Inch 40 PINS MIPI 1800C/D Lightweight

    Ask Lasest Price
    Brand Name : HuaXin
    Model Number : HX049WDM01
    Certification : ISO14001/ ISO9001/IATF16949
    Price : $53~$29
    Payment Terms : T/T
    Supply Ability : 500K pcs per month
    Delivery Time : 4~6weeks
    • Product Details
    • Company Profile

    1920*1080 Small Oled Display Module 0.49 Inch 40 PINS MIPI 1800C/D Lightweight

    0.49 inch Micro OLED Display with Board - 1920×1080 Resolution, 40 PINS MIPI Interface, 1800C/D Brightness
    Product Specifications
    AttributeValue
    Display TechnologyAR display
    Size0.49 inch
    Resolution1920×1080
    Interface40 PINS MIPI
    View AngleAll directions
    Brightness1800 C/D
    Testing BoardHDMI or Type C optional
    Technical Parameters
    Part No.HX049WDM01
    Display Mode0.49 inch micro OLED with board
    Outline Size (mm)15.68×9.09×1.5
    AA Size (mm)10.783×6.065
    Display Dots1920×1080
    Product Images
    0.49 inch Micro OLED display front view 0.49 inch Micro OLED display side view 0.49 inch Micro OLED display with testing board

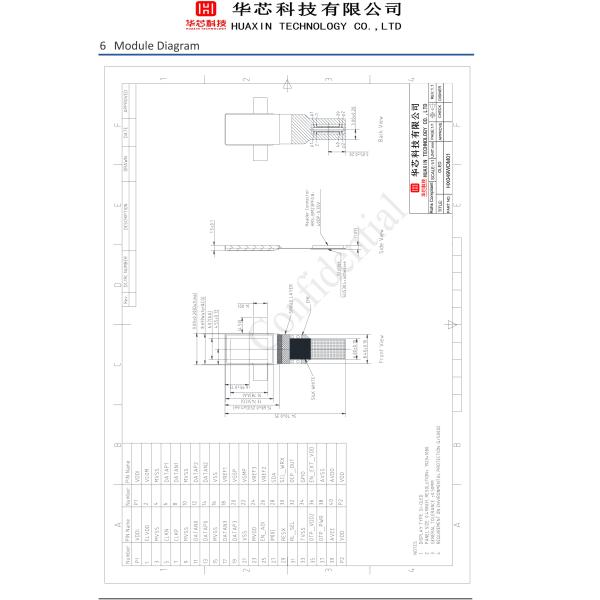

    Drawing & Pin Definition
    Micro OLED pin definition diagram
    Micro OLED Technology Overview
    Key Advantages
    • Ultra-High Pixel Density (PPI)
    • Thin, Lightweight, and Compact Design
    • Superior Image Quality
    • Lower Power Consumption
    • Wide Operating Temperature Range
    • High Brightness & Efficiency
    • Manufacturing & Scalability Benefits
    Limitations
    • Higher Production Costs & Limited Supply
    • Limited Brightness (Compared to Micro LED)
    • Restricted View Angles
    • Shorter Lifespan
    • Small Display Applications Only
    • Potential Motion Blur in VR Applications
    • Competition from Micro LED Technology
    Company Advantages
    • Cost-effective inland manufacturing base
    • Advanced equipment for stable quality
    • Highly automated production processes
    • 20+ years of LCD industry expertise
    • Custom product design capabilities
    Certifications
    • ISO14001
    • ISO9001/IATF16949
    • SGS Certified LCD Modules
    Company Profile
    • Huaxin Technology (Enshi) Co., LTD
    • Location: Hubei, Enshi
    • Established: 2009
    • Specialization: R&D, production and sales of LCD, LCM, TFT, backlight, and OLED
    • Register Capital: 20 Million
    • Employees: 500+
    • R&D Team: 10% of workforce
    • QC Team: 15% of workforce
    Production Capacity
    Annual Production Capacity20212022202320242025Unit
    LCD Production4.59999Thousands/Day
    LCM Production70150300450450Thousands/Day
    Backlight Production100200300500500Thousands/Day
    OLED Production1020304050Thousands/Day
    Product Applications
    • VR/AR/MR Headsets
    • Military & Aerospace Systems
    • Medical Devices & Microdisplays
    • Camera & Electronic Viewfinders
    • Automotive Displays
    • Wearable & Smart Glasses
    Technology Comparison
    FeatureMicro OLEDTraditional OLEDMicroLED
    SubstrateSilicon waferGlass/plasticSapphire/glass
    PPI3,000-5,000+400-8001,000+
    Size<1 inch commonSmartphone/TV sizesScalable
    Power UseLowMediumVery Low
    LifespanModerateModerateVery Long
    CostHighModerateVery High
    Future Outlook

    Micro OLED technology is expected to dominate AR/VR and wearable displays due to its unmatched pixel density. Major companies including Sony, Samsung, BOE, and eMagin are investing heavily in this technology.
